Brakes

Electric Parking Brake (EPB) and Active Cornering Assist (ACA) are introduced on Corolla Hatchback for 2019.

  • The electric parking brake installed on Corolla HB is similar in construction and operation to Avalon, Camry and C-HR.

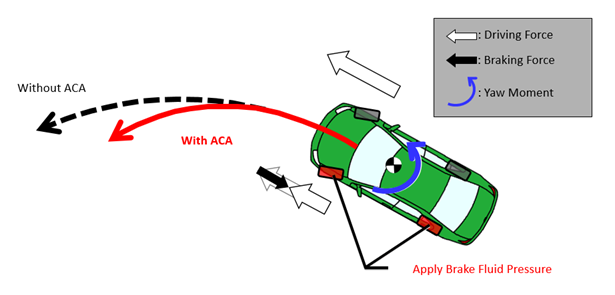

  • Active Cornering Assist (ACA) activates in understeering situations such as when turning under high G-force with accelerator pedal depressed. The VSC system adds brake force to the driving wheels according to lateral acceleration and generates yaw moment (Yaw gain) through differences of driving force between the left and right driving wheels, suppressing the understeering condition.

Lighting

Exterior lighting is all LED with triple J-shaped front clearance lighting for a unique appearance. Intelligent AFS is added for better visibility in turns.

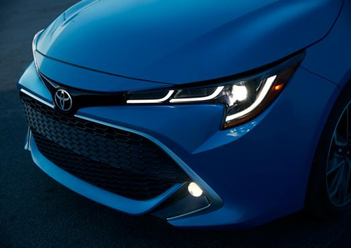

J-shaped Front Clearance Lighting

Combination Meter / Multi-information display

There are two options for combination meter/Multi-information display available on the 2019 Corolla HB.

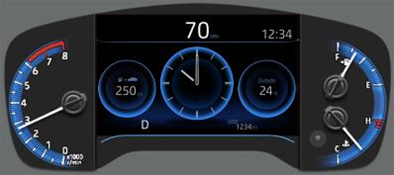

High grade Combination Meter w/ 7” MID and 3D effect panel

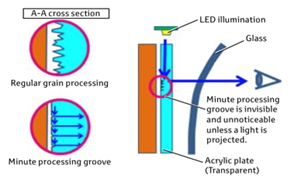

The optional 3-D effect panel (Toyota First) is a transparent acrylic plate ornamentation panel that is in front of the 7-inch display that is made with tiny grooves that illuminate when light projected through the plate from the sides. Since the grooves are so minute, they are invisible to the naked eye. Once illuminated, they appear as if they are floating, producing a 3-dimensional feel.

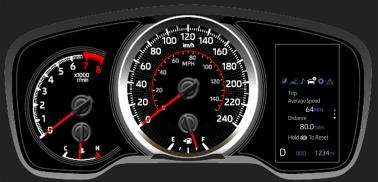

Mid/Base grade Combination Meter w/ 4.2” MID
Head-up Display (HUD) is also optional on Corolla HB.

Wiper Updates

The Corolla HB gets a network controlled wiper system like Camry and Avalon. The new optional windshield deicer system uses a heater element in the windshield glass to help reduce the formation of ice where the front wipers park. When the windshield deicer switch is turned on with the engine switch on (IG), the windshield deicer switch on signal is sent to the air conditioning amplifier assembly. When the air conditioning amplifier assembly receives this signal, it heats the windshield deicer.

Toyota Safety Sense 2.0

The second generation of Toyota Safety Sense includes all the familiar features of the former TSS-P with the additions of Road Sign Assist (RSA) and Lane Tracing Assist (LTA). The Corolla HB will include Dynamic Radar Cruise Control (DRCC) with full-speed operation on CVT vehicles. The DRCC is improved with linked turn signal functionality, allowing for smoother lane changes with earlier acceleration.

Toyota Safety Sense Comparison

With TSS 2.0, the forward recognition monocular camera is improved, introducing bicycle and night time detection of pedestrians. The TSS-C system on previous iM models did not include pedestrian detection. The improved detection capability improves Pre-collision Warning operation as low as 6 mph, and Pre-collision Brake operation as low as 3 mph. Refer to the repair manual and NCF for specific operation information.

Lane Tracing Assist

Lane Tracing Assist is a new system designed to assist the driver with steering to keep the vehicle running in the middle of its lane.  It has three main functions, Lane Departure Alert (LDA) with Steering Control, Vehicle Sway Warning and Lane Centering Function.

LDA uses the Forward Recognition Camera to recognize roadway boundaries. The system can recognize grass and dirt as roadway edges when lane markings are not available. The system will recognize and display the white lines in the MID for roadway edges the same as lane markings, and will apply steering assist as needed.

Vehicle Sway Warning works similarly to earlier systems and will notify the driver if the system is having to make too many steering corrections. This system is not intended for autonomous steering and the system will warn the driver and stop the vehicle if there is not enough driver input to the steering wheel.

The Lane Centering function utilizes lane markers to center the vehicle in its lane. In the absence of identified lane markings, the Lane Centering function uses the Millimeter Wave Radar to assist the Forward Recognition Camera to recognize and calculate the path of the preceding vehicle and uses steering assist to trace its route. The following image is displayed in the MID when it is activated.

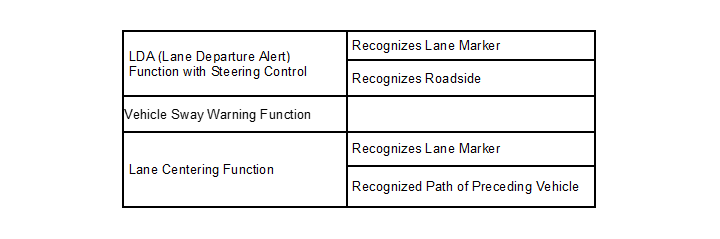

Lane Tracing Assist System Functions

Note: Vehicles equipped with Manual Transmissions are equipped with the earlier Lane Departure Alert system instead of Lane Tracing Assist.

For animation on LTA operation visit the Toyota Global Newsroom video [BB(1] on YouTube


Toyota Lane Tracing Assist Video (LTA)
